    XDEM Portable Single Arm Milling Machine Precision Machining CNC Lathe Hydraulic Single Rail Milling Machine

    Ask Lasest Price
    Brand Name : XDEM
    Model Number : LTLX0520
    Certification : CE
    Price : USD15000
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    XDEM Portable Single Arm Milling Machine Precision Machining CNC Lathe Hydraulic Single Rail Milling Machine

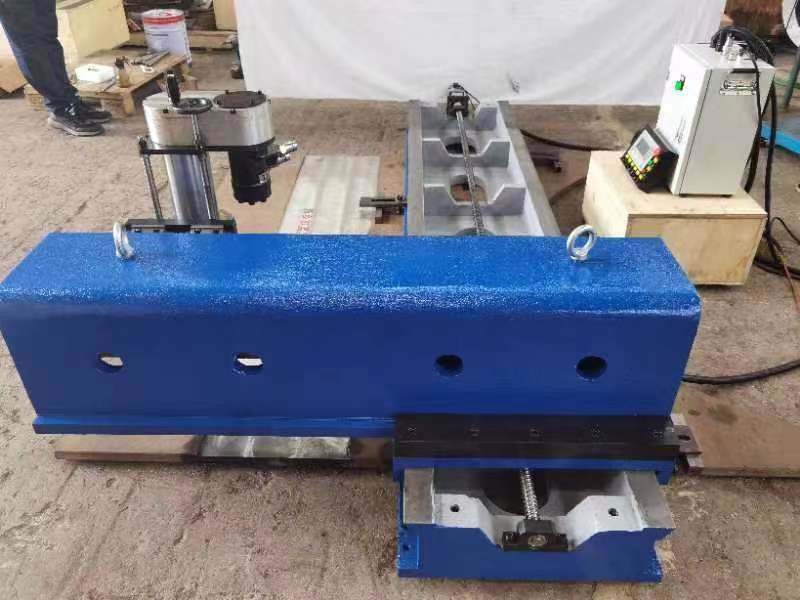

    Portable Milling Machine
    Portable milling machines use milling methods to process the surface of workpieces, including planar machining, drilling, etc. The milling machines produced by our company mainly consist of single rail milling machine, double rail milling machine, and gantry milling machine.
    Application of portable milling machines:
    1. Milling of flat, stepped, and square flange surfaces, as well as keyway and drilling processing.
    2.
    The processing and repair of gaskets and bases for heat exchangers, pumps, motors, and lifting equipment are also used for various sliding track systems.
    Equipment performance:

    1. The entire equipment components adopt modular design, which can be quickly installed and disassembled on site, greatly improving installation efficiency.
    2. Heavy duty guide rail with high precision ensures tool accuracy and flatness of the machining surface.
    3.
    Wide processing range, with a maximum processing time of 3 meters for one positioning.
    4.
    High machining accuracy, with a surface roughness of up to RA3.2.
    5.
    Both X and Y directions are equipped with automatic tool feeders, which can feed in multiple gears and have automatic fast feed and retreat functions, The X and Y axes can achieve manual feed for easy positioning and tool alignment, while the Z axis can be manually fed.
    6.
    The power system can choose hydraulic system and servo motor as power sources, with strong cutting power and high overall stability.
    Equipped with a remote circuit control system, it is easy to operate and has a high safety factor.

    Name
    LTDBX0520 Portable Single Arm Milling Machine
    Model
    LTDBX0520
    Motor Power
    15KW
    Voltage
    380V
    Feed method
    X/Y main track automatic feed; Z vertical direction manual feed
    Processing flatness
    0.10mm
    Roughness
    3.2um
    Fixed method
    Bolt/Magnet
    Cutter head
    125mm
    2-10m device
    Can be customized
    Other functions
    Configurable intelligent digital display/NC system
    Operation Method
    automatic / manual
    Package
    Fumigation disinfection plywood packing box
